Product Overview

This Sitex NAVPRO1200F 12" Combo is Presented By Si-Tex.

GENERAL INFORMATION

SKU: SITNAVPRO1200F

UPC: 10407110929

Brand: Si-tex

Manufacturer: SITX

Additional Details

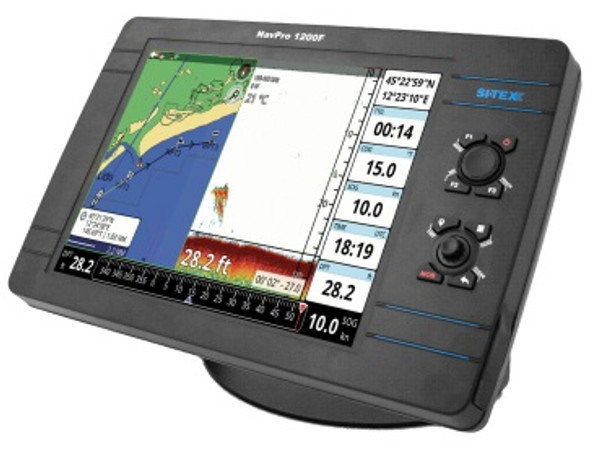

Model: NAVPRO1200F

12" Hi-Res. Hybrid Touch Screen Display

Heavy Duty Yoke mount for Bulkhead or Overhead Mounting

NMEA-0183 & NMEA2000 Interfacing

WIFI Interface

Automatic Software Updates when in WIFI Coverage

Captain Cloud automatically backs up all User Data to a Free Cloud Based Data backup Service for Waypoints, Marks, Events, and Track memories when in WIFI coverage.

Mirror Screen Capability via Bluetooth connection allows user to download mirror app to his Android based smart phone and view and control the NavPro 900 from Smart Phone.

Optional dedicated Remote Control Available

Designed for easy flush mount without any special kit needed

New CHIRP Sounder with selectable 300w, 600w, & 1kW outputs (NavPro-900F version) CHIRP Sounder has scroll back screen memory that allows user to quickly scroll back and pickoff a location to mark on Nav Chart.

Uses the popular AIrmar CHIRP Transducers with TX ID will automatically setup the Sounder transducer interconnect

Adapters available to allow the unit to be installed on older non-CHIRP transducers. Like 50/200 kHz Dual Frequency transducers and 120kHz Single Freq. transducers. This allows the NavPro 900F to be used to retro fit onto any of the older SI-TEX Transducers. For example, any of the transducers used by the very popular old CVS-106 Sounders. 50/200 & 120kHz

If customer doesn’t have a need for CHIRP sounding he can use a traditional less expensive transducer option

Internal Hi-Resolution 18Hz 72 Channel GPS Receiver & Antenna

New User interface makes the unit very easy to operate and navigate with

Full AIS Integration when interfaced to an AIS Unit

The NavPro 1200 MFDs offer optional high-resolution WI-FI radar that makes it easy to install and rig. SI-TEX’s 4kW, 24-inch compact radome on just about any vessel. By mounting and wirelessly syncing the SI-TEX MDS-12 Network Radome to a NavPro unit, boaters can turn these popular and affordable MFDs into powerful 36-nm range radars that deliver excellent target resolution and a range of features boaters expect from professional-grade SI-TEX radars. Overlaying radar targets onto the feature-rich Polaris Charts provides navigators with enhanced situational awareness and safety, even in the most challenging conditions.

In addition to the included Polaris Charts, SI-TEX’s NavPro Series is also compatible with optional Navionics Platinum+ cartography.

Specifications

LCD Display Size	12.0"
Display Brightness	1250 NITS
Display Resolution	1024x768
Touch Screen	Yes, Capacitive Multi-Touch
Keyboard Backlight	Yes
GPS Receiver	Built-In HighResolution 18Hz 72 Channel GPS/GLONASS
External GPS	Yes, optional via 6 pin Connector
Network Connections	NMEA-2000 (Optional Cable Required) Dual NMEA-0183 Input/Output Ports
WIFI Connection	Yes
Bluetooth Connection	Yes
Waterproof Rating	IPX6
Operating Temperature range	-10’C to +60’C
Warranty	2 Year
Input Voltage	10 to 35 VDC
Dimensions	15.3" Wide x 10.9" High x 5.8" Deep
