Product Overview

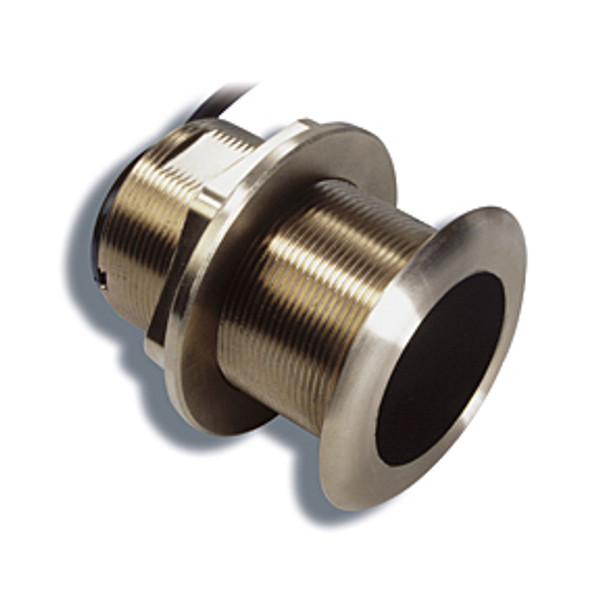

This Sitex B60-20ES 50/200 600W 20D Tilted Element Depth/Temp is Presented By Si-Tex.
GENERAL INFORMATION
Additional Details
Features
- Fixed 20° tilted version for 16° to 24° hull deadrise
- Fixed 12° tilted version for 8° to 15° hull deadrise
- Engineered for center-console and trailered boats
- Low-profile protrusion below the hull
- No affect on your boats running performance
- Bronze or stainless steel housings available
- Arrow on cap points toward keel when installed
- Built-in temperature sensor
- WarningExempt
50/200 kHz-A | ||
Number of Elements and Configuration | ||
Beam Width (@-3 dB) | 45° | 12° |
RMS Power (W) | 600 W | 600 W |
TVR | 155 dB | 164 dB |
RVR | -174 dB | -184 dB |
FOM* | -31 | -21 |
Q | 28 | 31 |
