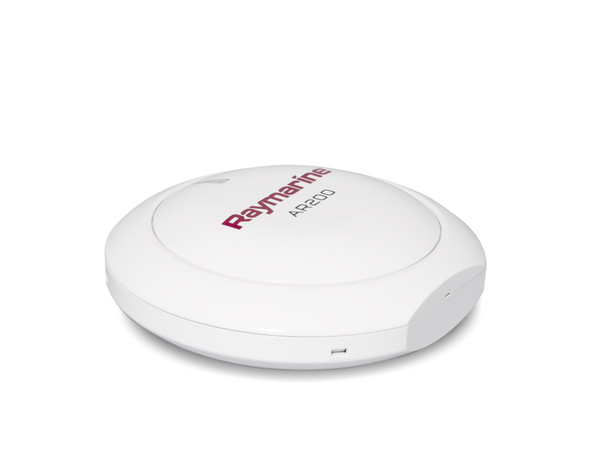

The AR200 is an Augmented Reality Sensor consisting of a Global Navigation Satellite Systems (GNSS) Receiver and an Attitude and Heading Reference System (AHRS) sensor. The AR200 provides position, heading, pitch and roll data to compatible Axiom MFDs. When combined with a compatible IP camera the AR200 enables use of the ClearCruise™ Augmented Reality features available on your Axiom MFD.
Specifications| POWER | |
| Nominal supply voltage | 12 V dc (Supplied by the SeaTalkng® network.) |
| Operating voltage range | 9 V dc to 16 V dc (protected up to 32 V dc) |
| Power consumption | 30 mA Max. |
| LEN (Load Equivalency Rating) | 1 |
| ENVIRONMENTAL | |
| Operating temperature range | -25 C to +55 C (-13 F to 131 F) |
| Storage temperature range | -25 C to +70 C (-13 F to 158 F) |
| Relative humidity | 93% |
| Water Ingress Protection | IPx6 and IPx7 |
| CONFORMANCE | |
| EMC Directive | 2014/30/EU |
| Australia and New Zealand C-Tick compliance | Level 2 |
| RoHS Directive | 2011/65/EU |
| WEEE Directive | 2012/19/EU |
| GNSS RECEIVER | |
| Signal acquisition | Automatic |
| Channels | Simultaneously track up to 28 satellites. |
| Operating frequency | 1574 MHz to 1605 MHz |
| Update rate | 10Hz |
| Sensitivity | Cold start = -147 dBm Re-acquisition = -160 dBm Tracking = -164 dBm |
| GNSS compatibility | GPS GLONASS Galileo ready Beidou ready |
| Satellite Differential Type (SBAS) | WAAS (United States) EGNOS (Europe) MSAS (Japan) GAGAN (India) QZSS ready (Japan) |
| Differential acquisition | Automatic |
| Position accuracy without SBAS (95%) | < 15m |
| Position accuracy with SBAS (95%) | <5m |
| Speed accuracy (95%) | <0.3m |
| Time to first fix from cold start | <2 minutes (<60 seconds typical) |
| Time to first fix from hot start | <45 seconds |
| Geodetic Datum | WGS—84 |
| Antenna | Internal |
| AHRS | |
| AHRS | 3—Axis digital accelerometer 3—Axis digital compass 3—Axis MEMS Gyro digital angular rate sensor |
| Magnetic compass accuracy | Static = ?1° RMS Dynamic = ?3° RMS |
| Pitch, Roll and Yaw accuracy | ?1° |
| Heading, Pitch, Roll and Rate of Turn update rate | 10Hz |
- Mounting trim (top)
- Small sealing ring
- AR200
- x3 large bulkhead bracket fixings (pan head pozi DIN7981-ST 3.9x22 C Z A4 Stainless steel)
- Mounting tray (bottom)
- x4 small surface mount fixings (pan head pozi DIN7981-ST 2.9x13 C Z A4 Stainless steel)
- Bulkhead (wall) bracket
- Large sealing ring
- Documentation
- 6m (19.7ft) SeaTalkNG white cable
