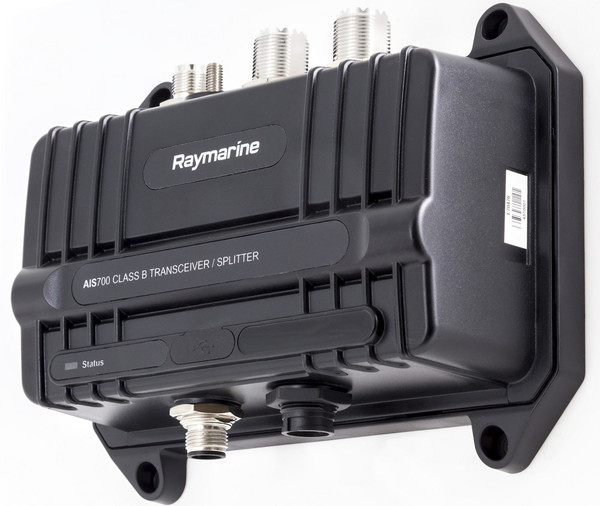

The AIS700 from Raymarine is a Class B Automatic Identification System (AIS) transceiver designed for use with Raymarine multifunction navigation display systems. As a Class B AIS transceiver, the AIS700 not only receives broadcasts from other vessels, it also transmits your own boat’s information too helping you to be seen on other vessels’ systems.
| Evironmental |
| Operating temperature | -15°C to +55°C |
| Storage temperature | -20°C to +75°C |
| Water ingress | IPX6 and IPX7 |
| Humidity | Up to 93% @ 40°C |
| Power |
| Power Supply | 12v and 24 nominal |
| Power Consumption | <3W |
| <3W | 3A |
| Load Equivalency Number | 1 LEN |
| RF Specifications |
| DSC Receiver | Implemented by time sharing with one TDMA receiver |
| Receiver 1 band | 156.025 MHz to 162.025 MHz (in 25KHz steps) |
| Receiver 2 band | 156.025 MHz to 162.025 MHz (in 25KHz steps) |
| Transmitter band | 156.025 MHz to 162.025 MHz (in 25KHz steps) |
| Transmitter specification | To meet IEC 62287-2 relevant sections |
| Receiver specification | To meet IEC 62287-2 relevant sections |
| Transceiver specification | To meet IEC 62287-2 relevant sections |
| GPS receiver | u-blox MAX-M8W |
| GPS receiver channels | 72 channels |
| GPS Cold start acquisition time | 26s nominal |
| Positional source | GPS & GLONASS |
| AIS performance | 5W SOTDMA |
| External Connection |
| VHF antenna connector type | SO-239 co-axial |
| VHF radio connector type | SO-239 co-axial |
| GNSS antenna connector | 50 Ohm TNC co-axial |
| NMEA2000 | DeviceNet male |
| USB | Micro-B |
| External interface isolation | NMEA0183 and NMEA 2000 interfaces to incorporate galvanic isolation from power supply as required by the relevant interface specification. |
| NMEA0183 interface 1 (MFD connection) | NMEA 0183 HS (IEC 61162-1) compliant, bi-directional, RS422 levels. 4 wire interface (differential signalling). Configurable baud rate. Input to MFD from AIS. |
| NMEA0183 interface 2 (NMEA0183 instrument connection) | NMEA 0183 (IEC 61162-1) compliant, bi-directional, RS422 levels. 4 wire interface (differential signalling). 4 wire interface (differential signalling) Configurable baud rate |
| USB interface (PC connection) | Protocol NMEA 0183 HS (IEC 61162-1) compliant, bi-directional USB port, 38.4 kBaud |
