Product Overview
This Newmar ACCY-IBX Blank Panel is Presented By Newmar.
GENERAL INFORMATION
Additional Details
Accessory Panels
These versatile panels are ideal for smaller vessels with only a limited number of electrical circuits, or for larger systems where their modular design makes for an easy and attractive expansion of existing system capacity.
Stock panels with breakers installed come standard with DC indicator lights, but may be factory modified with AC indicator lights instead. Blank versions of the panels come with all necessary hardware to install lights and breakers. All panels are provided with a circuit identification label set of 22 common on-board electrical functions (see below).

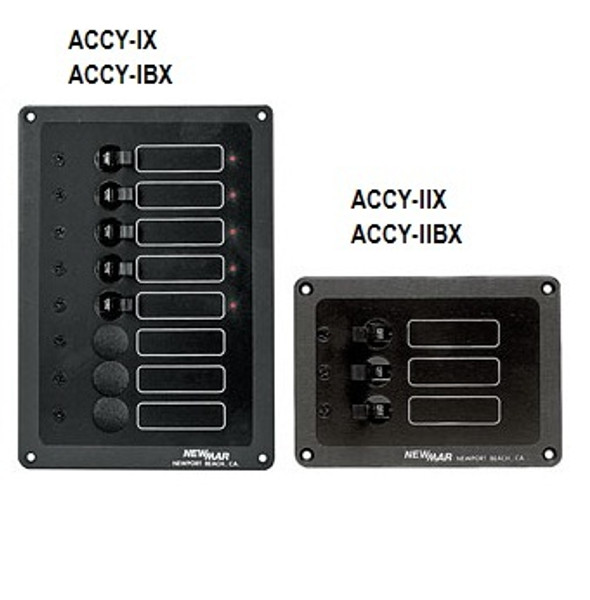

ACCY-IX:
8 breaker capacity, 5 installed standard; 2-5A, 1-10A, 1-15A, 1-20A or specify. 8 DC circuit "ON" indicator lights installed standard, AC lights optional. Size: 7 1/2" x 5 1/4", Weight: 2 lbs.
ACCY-IBX: Blank version of ACCY-IX above. No breakers provided. Label set, light and breaker mounting hardware provided. Weight: 1 lb.
Half-height version of ACCY-IX at left. 3 breaker capacity, 3 installed standard; 3 DC ?ON? indicator lights installed standard - AC optional. 1-5A, 1-10A 1-15A or specify. Size: 3 3/4" x 5 1/4", Weight: 1 lb.
ACCY-IIBX:
Blank version of ACCY-IIX above. No breakers or lights provided. Label set, light and breaker mounting hardware provided. Weight: 1 lb.
Installation Cut-Out Dimensions*
| Model | Inches (W x H) |
| ACCY-IX | 4 X 6 |
| ACCY-IBX | 4 X 6 |
| ACCY-IIBX | 4 X2.5 |
| * Allow approximately 3" depth clearance for all panels on this page. | |
| LS-I Standard Set 22 Labels | ||
| ACCESSORY AFT CABIN ANCHOR BILGE PUMP BOW CABIN LIGHTS ENGINE ROOM | FORE CABIN MAIN CABIN MAST NAV/COM OUTLETS REFRIGERATOR RUNNING | SPARE SPREADER SUMP PUMP WATER HEATER WATER PRESSURE WINDLASS WINDSHIELD |
