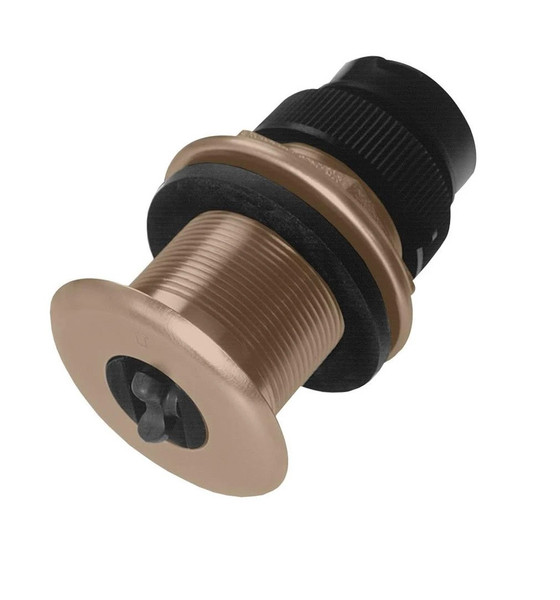

Furuno DST810MSF NMEA 2000 Airmar Smart Transducer Bronze Thru Hull

$422.87
Furuno Dst810Msf Nmea 2000 Airmar Smart Transducer Bronze Thru Hull Furdst810Msf
Availability:
pre_order
Note:
Pre-orders once approve can not be cancelled, ETA for the preorder will be notified over email. Know more about our Pre order T&C
Adding to cart… The item has been added

Product Overview

This Furuno DST810MSF NMEA 2000 Airmar Smart Transducer Bronze Thru Hull is Presented By Furuno.

GENERAL INFORMATION

  • SKU: FURDST810MSF
  • UPC: 611679391384
  • Brand: Furuno
  • Manufacturer: FUR

    • Additional Details

  • Model: DST-810MSF
  • 5 Hz speed output (5X per second) for visibly smoother speed-through-water reporting and faster data for better decision making
  • Integrated attitude sensor for heel and trim benefits sailing and power boats
  • Advanced Speed Calibration allows for manual speed entries for multiple heel angles and up to 10 speeds, formerly only possible through expensive PC software
  • DST810 stores configurations and delivers data to the NMEA 2000® network.
  • Depth, heel-corrected speed-through-water, heel and trim, and water temperature from one installed multisensor.
  • Popular depth sensor for shallow water performance.
    • Specifications
    Acoustic WindowUrethane
    Hull DeadriseUp to 22°
    Data Update RateDepth 1X/second
    Data Update RateSpeed 5X/second
    Attitude Accuracy+/— 1° nominal after sensor calibration
    Depth Frequency235 kHz
    Minimum Depth Range0.5 m (1.6')
    Maximum Depth RangeUp to 100 m (330')—NMEA 2000®
    Speed RangeUp to 45 knots
    Pressure Rating3 m (10')
    Pulse Rate20,000 p/nm* (5.6 Hz per knot)—*p/nm = pulses per nautical mile
    Supply Voltage9 VDC to 16 VDC—per NMEA 2000
    Supply Current<200 mA—per NMEA 2000®
    Wireless ProtocolBluetooth Low Energy (BLE)
    Wireless RangeUp to 30 feet depending on mount location
    Standard Cable Length6 m (20') DeviceNet—NMEA 2000®
    Temperature Sensor Accuracy+/-0.5°C (+/-1.8°F)
    Temperature Sensor Range-10°C to 40°C (14°F to 104°F)
    NMEA 2000 Load Equivalency Number (LEN)3
    What's in the Box:
    • DST-810 Insert
    • Bronze Housing
    • WarningWARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
