Product Overview

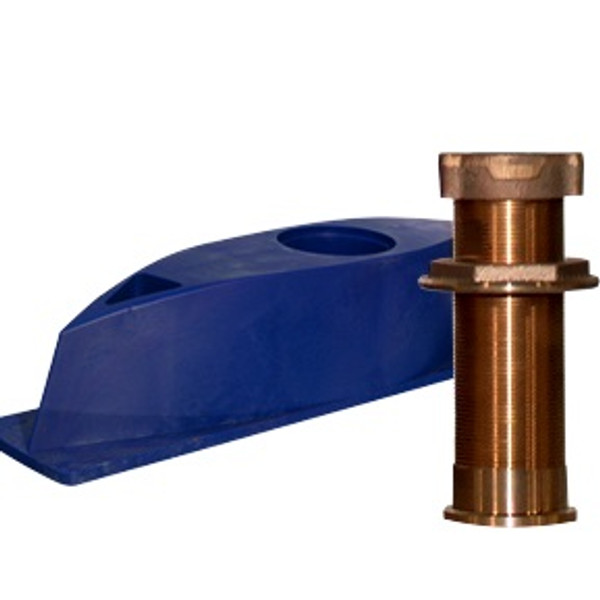

This Furuno 235-MSLF Long Stem Bronze Thru-Hull Depth/Temp NMEA2000 Smart Sensor is Presented By Furuno.
GENERAL INFORMATION
Additional Details
- 235KhZ
- Weight: 3.9 kg (8.7 lb)
- Acoustic Window: Urethane
- Hull Deadrise: Up to 28° with fairing
- Hole Diameter: 51 mm (2?)
- Data Update Rate: 1 per second
- Minimum Depth Range: 0.5 m (1.6?)
- Maximum Depth Range: Up to 180 m (590?)
- Pressure Rating: 3 m (10?)
- Pulse Rate: 20,000 p/nm (5.6 Hz per knot)
- Supply Voltage: 9 VDC to 16 VDC
- Supply Current: 200 mA
- Standard Cable Length: 6 m (20?)
- Temperature Sensor Accuracy: 0.5°C ( 1.8°F)
- Temperature Sensor Range: -10°C to 40°C (14°F to 104°F)
- NMEA 2000 Load Equivalency Number (LEN): 4
