Product Overview

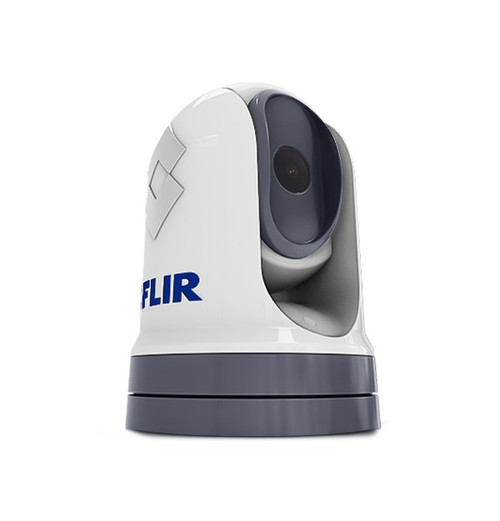

This FLIR M364 SinglePayload Thermal Camera No JCU 640 x 512 24D HFoV is Presented By Flir.

GENERAL INFORMATION

SKU:

FLIE70525

UPC:

723193826935

Brand:

FLIR

Manufacturer:

ray

Additional Details

Model: M364

Pairing a rugged, all-weather design with one of the most advanced FLIR thermal imaging cores, the M332 and M364 deliver awareness-enhancing thermal vision for law enforcement, commercial, and recreational applications. Advanced gyro-stabilization and high-performance thermal imaging detect obstacles and targets in complete darkness and heavy seas, allowing safe navigation in the most challenging conditions.

Thermal imaging offers vision in complete darkness, glare, and light fog.

Two-axis mechanical stabilization virtually eliminates the effects of pitch, heave, and yaw.

Exceptional connectivity with navigation and security systems.

Specifications

General
Detector Type	640 x 512 VOx Microbolometer
Field of View	24° x 18°
Image Processing	FLIR Proprietary Digital Detail Enhancement
HD-SDI Lossless Video Output	Yes
Network Video Output	Single H.264 Network Video Stream
Pan & Tilt Adjustment Range	360° Continuous Pan, +/- 90° Tilt
Pan/Tilt	Yes
Connections & Communications
Analog Video Output	NTSC
Analog Video Connector Types	BNC
Environmental
Automatic Window Defrost	Standard at Power-Up
EMI	IEC60945
Lightning Protection	Standard
Operating Temperature Range	-13°F to +131°F (-25°C to +55°C)
Salt Mist	IEC60945
Shock	15g vertical, 9g horizontal
Storage Temperature Range	-30°F to +158°F (-30°C to +70°C)
Vibration	IEC60945
Water Ingress	IPX6 (heavy seas, power jets of water)
Wind	100 knots (115.2 MPH)
Sand & Dust Ingress	Mil-Std-810E or IP6X
Marine Imaging & Optical
Focus	Fixed 12ft (3m) to infinity
Thermal Imaging
Continuous E-Zoom	8x
Focal Length - Thermal	18mm
Video Refresh Rate - Thermal	30 Hz
