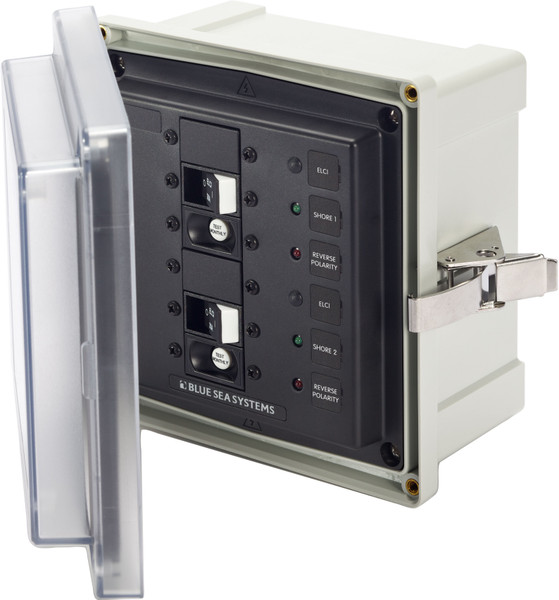

| Additional Details | Model: 3117-BSSIncludes one Dual 120V AC / 30A ELCI MainGlass filled polycarbonate mounting boxClear cover allows easy view of circuit breaker statusOverlapping cover for strength and increased gasket protectionOversized, formed in place seamless PUR gasketEasily removable stainless steel hinge pin for unobstructed installationStainless steel latch secures cover without penetrating the enclosureStainless steel mounting hardware includedIncludes waterproof glandsLED lights for back lighting and ON indication Panel enclosure for ELCI Main circuit breakers and other large frame devices. Meets ABYC E-11 when used with an ELCI Main circuit breaker and mounted within 10 feet of the shore power inlet Specifications
| Minimum Operating Temperature | -40° C | | Maximum Operating Temperature | 85° C | | Cover Screws and Hardware | 10-32 Stainless Steel | | Enclosure Size | 6.0" x 6.0" x 4.0" (152mm x 152mm x 102mm) | | Exterior Overall Dimensions | 7.6" x 7.4" x 4.7" (192mm x 188mm x 120mm) | | Mounting Hardware | 1/4" Diameter, #12 (6 mm) | | Weight | 7.00lb (3.18 kg) |
What's in the Box:- SMS Panel Enclosure
- ELCI Main 120V 30A, 30mA, 3102 x 2
- small wire glands, 3124 x 2
- medium wire glands, 3125 x 4
- green "ON" indicating 120V AC LEDs, 8034 x 2
- red "Reverse Polarity" indicating 120V AC LEDs, 8066 x 2
- LED plugs x 2
- circuit breaker mounting screws x 12
- backlit circuit label positions x 6
- Source Selection Label Set (10 labels)
- Reverse Polarity labels x 2
- ELCI labels x 2
- Panel Voltage ID label-120V AC
|
