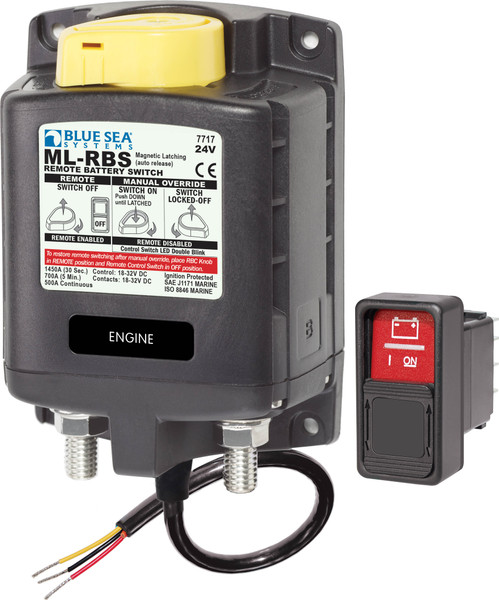

| Additional Details | Model: 7717-BSSManual override knob provides an added level of safety allowing control with or without power and offering LOCKED OFF capability for servicingLED output to remotely indicate switch state - requires optional LED3? 8"-16 tin-plated copper studs for maximum conductivity and corrosion resistance7? 8" (22 mm) stud length accepts multiple cable terminalsLabel recesses for circuit identificationSilver alloy contacts provide high reliability for switching live loads 500 Amp magnetic latching switch provides high amperage switching under load, manually or from remote locations Auto Releasing ML-Series Remote Battery Switch with SPST Switching Provides 500A switching and features of current ML Remote Battery Switches, but can be controlled with SPST or SPDT switch for applications where a normally open relay is desired Specifications
| Control Circuit Voltage | 20.2 to 32.9V DC | | Control Circuit Connection | Tinned Wire | | Nominal Voltage | 24V DC | | Mounting | #10 | | Coil Function | Auto-Releasing | | Amperage Operating Current | 8mA when OFF
13mA when ON | | Amperage Operating Current when changing state | <4A (40 ms) | | Continuous Rating | 500A | | Intermittent Rating | 700A - 5 minutes | | Cranking Rating 30 sec | 1450A DC | | Minimum Operating Temperature | -10° C | | Maximum Operating Temperature | 60° C | | Cable Size to Meet Ratings | 2x (4/0) | | Live Current Switching | 300A @ 12V DC, 150A @ 24V DC | | Master Control Switch Capability | Yes | | Mechanical Endurance | 100,000 Cycles | | Terminal Ring Diameter Clearance | 1.18in (29.97 mm) | | Terminal Stud Length | 0.875in (22.23 mm) | | Terminal Stud Size | 3/8" - 16 (M10) | | Weight | 2.05lb (0.93 kg) |
|
