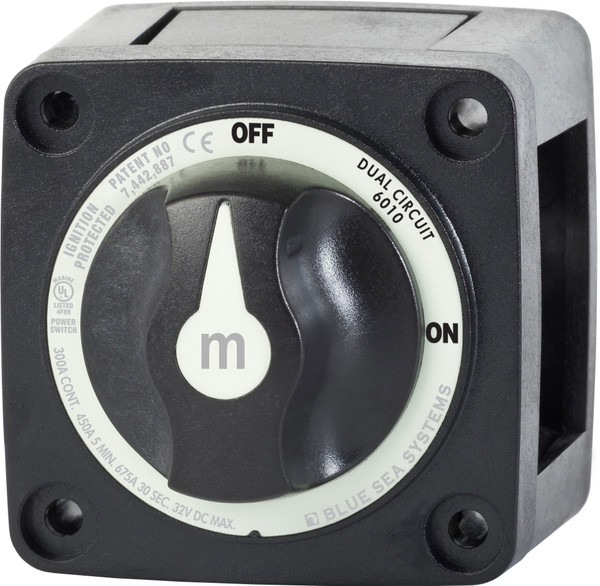

This Blue Sea M-Series Battery Switch On/Off/ Dual Circuit Black is Presented By Blue Sea Systems.

GENERAL INFORMATION

SKU:

BSS6010200

UPC:

632085601027

Brand:

Blue Sea Systems

Manufacturer:

GUE

Additional Details

Model: 6010200-BSS

Tin-plated copper studs for maximum conductivity and corrosion resistance

Studs accept 3/8" (M10) ring terminals

7/8" (22mm) stud length accepts multiple cable terminals

Blue Sea Systems one-piece terminal stud design never loosens over time

Isolating cover with snap-on sections protects rear contacts

Case design allows surface or rear panel mounting

Waterproof — rated IP66 from water projected in powerful jets

One-piece stainless flange nuts ensure safe and secure connections

Breakout tabs allow wire access in any direction

Simultaneously switches two isolated battery banks

Specifications

Switch Type	Dual Circuit
Color	Black
Switch Positions	2
Battery Combine	No
Alternator Field Disconnect	No
Maximum Voltage	32vDC
Stud Size	3/8"
Terminal Stud Torque	120 in-lb (13.56 Nm)
Continuous Rating	300A
Intermittent Rating	450A (5 min)
Cranking Rating 30 sec	675A
Battery Inputs	2
Cable Clearance For 4/0 AWG Cables	1.12in (28.45 mm)
Cable Size to Meet Ratings	4/0 AWG (120mm )
Mounting Holes	Accept #10 Screw
Stud Material	Tinned Copper
Stud Torque	120 in-lb (13.56 Nm)
Terminal Stud Size	3/8" - 16 (M10)
