Product Overview

This B&G V100-B VHF/AIS System with GPS500 is Presented By B & G.

GENERAL INFORMATION

SKU:

BNG00015793001

UPC:

9420064118489

Brand:

B & G

Manufacturer:

LOW

Additional Details

Model: 000-5793-001

Integrated Class B AIS transmitter & receiver

Class D DSC approved VHF radio

Integrated GPS receiver

Connect up to 4 wireless and 4 wired handsets

Add an optional loudhailer and up to 4 external speakers

NMEA 0183® and NMEA 2000® connectivity

Bundled with dedicated GPS receiver, GPS-500 for AIS transmission.

60 second audio rewind

Configurable external speakers with volume offsetting

Handset backlight settings can be grouped with NMEA2000 backlight groups so MFD’s and VHF Radios can have backlight controlled together

Track Buddy — track up to 5 "buddies" using their VHF MMSI

With a possible 8 connected handsets (4 wired and 4 wireless) and 4 external speakers, stay connected from anywhere on board. V-100-B is bundled with GPS-500 for enhanced AIS functionality.

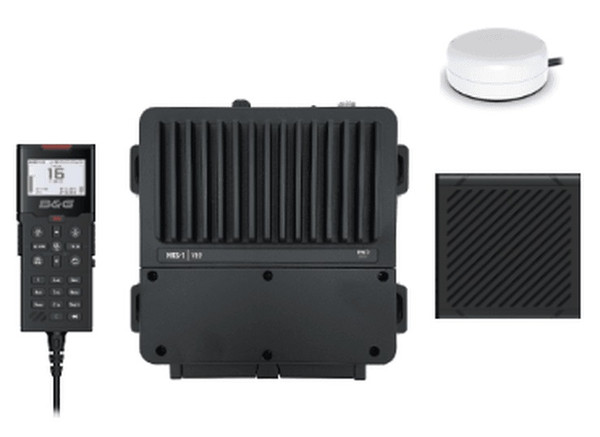

System comes with NRS-2 VHF Blackbox module with Class B AIS built in, GPS500 GPS Antenna, one H100 wired handset and one SP100 speaker.

The V100-B includes a Class B AIS transceiver, which not only receives AIS targets but also transmits your boat’s position to nearby AIS-equipped vessels. This helps other mariners to spot your boat through any conditions, day or night. A built-in AIS receiver monitors the position of other AIS-equipped vessels, helping you to proactively avoid collisions in crowded harbours and waterways. AIS information can be viewed on the radio’s built-in screen, or overlaid on your chart or radar screen through a compatible multifunction display.

The V100-B comes with 1 wired handset and 1 speaker, but you can add up to 4 more B&G H60 wireless and 3 more H100 wired handsets along with up to 3 additional external speakers, doubling your radio as an on-board intercom. Each wireless handset with inductive charging, duplicates your radio’s display and controls on a large, easy-to-read screen, viewable in all lights, with intuitive user interface. Access all key functions with channel scan and favourites, alphanumeric keypad, clear audio, handset station naming and 60 second audio rewind.

Specifications

System Features
Local/Distant control:	Yes
Position polling:	Yes
Group call:	Yes
Call logs:	Yes - 20 individual and 10 distress
Channel naming:	Yes
Handset naming:	Yes
Dual watch / Tri watch:	Yes
Favourite channel scan:	Yes
All scan:	Yes
User programmable MMSI:	Yes
User programmable ATIS ID:	Yes
MMSI and NAME directory:	Yes - 50 vessel contacts and 20 group contacts
Software updates:	Yes, via NMEA 2000
NRS-1 / NRS-2 - BLACKBOX
Power supply:	12 V DC battery system
Nominal operating voltage:	+ 13.6 V DC
Low battery alert:	10.5 V DC +/- 0.5 V
Over voltage protection:	> 15.8 V +/- 0.5 V
Current drain (transmit):	≤6 A @ 25 W / 1.5 A @ 1W (12 V DC)
Current drain: NRS-1 (standby, 1 FHS):	Less than 400 mA in standby
Current drain: NRS-2 (standby, 1 FHS):	Less than 650 mA in standby
Replacement fuse:	10 A, mini-blade type
Temperature range:	-20 C to +55 C (-4 F to 131 F)
VHF antenna connector:	SO-239 (50 ohm)
AIS antenna connector (NRS-2):	SO-239 (50 ohm)
GPS antenna connector:	SMA (female)
Wireless connector:	RP-SMA (female)
Compass safe distance:	0.5 m (1.5’)
NMEA 0183 input NRS-1 / NRS-2:	RMC, GGA, GLL, GNS
NMEA 0183 input NRS-2:	HDG, HDM, HDT
NMEA 0183 output NRS-1 / NRS-2:	DSC, DSE, MOB, VDM
NMEA 0183 output NRS-2:	VDO
External Speaker output power:	4 W @ 4 ohm x 4 outputs
External speaker:	4 ohm, minimum 5 W
Hailer output power:	25W @ 4 ohm
Hailer speaker:	4 ohm, minimum 30 W
Waterproof:	IPx5
Transciever
Usable channels (country specific):	International, USA, Canada, Weather
DSC mode:	Class D (Global) with dual receiver (individual CH70)
Transmitter
Transmitter Frequency range:	156.025 - 157.425 MHz
Output power:	25 W (23 ± 2) / 1 W (0.8 ± 0.2)
Transmitter protection:	Open / short circuit of antenna
AIS (CLASS-B) (NRS-2 ONLY)
AIS mode:	Class-B CS (CSTDMA)
AIS receive function:	Yes, dual receivers (receive only)
AIS transmit function:	Yes, single
BUILT-IN GPS RECEIVER
Number of channels:	72 channels
Receiving frequency:	1575.42 MHz
Horizontal accuracy:	<10 m
Position fixing time:	Warm start: 30s, Cold start: 90s
WIRELESS SPECIFICATION
Wireless standard:	802.11 b/g/n20
Operating frequency:	2412~2472 MHz (for EU); 2412-2462 MHz (for US)
